Tire Model Diagram

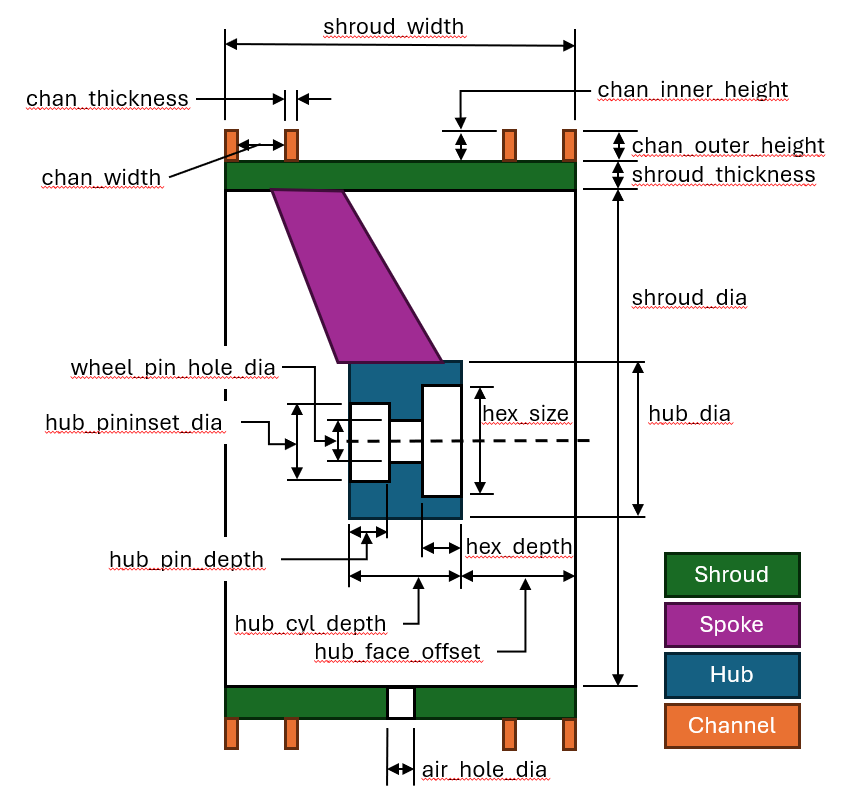

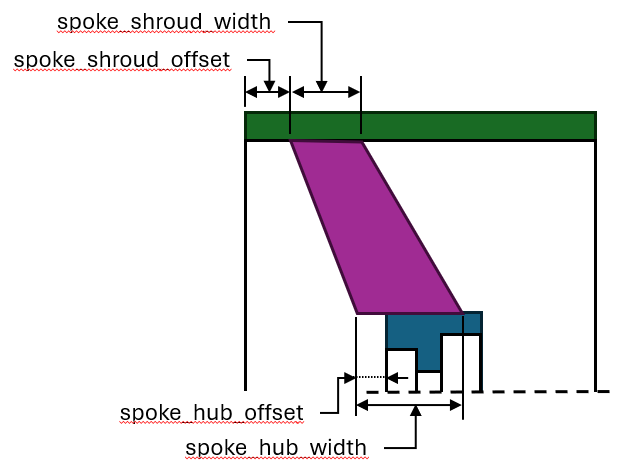

The tire parameter model is fairly comprehensive but that can make it complex. Cross sections of the entire tire and a single spoke are shown with the specific parameters values called out.
